EN 13414-1 22mm Double Leg Steel Wire Rope Sling Assembly

Brand Name : Anfeng / AF

Model Number : CSDFS22

Certification : CE, ISO 9001

Place of Origin : China

MOQ : 500 pcs

Price : Call or Email for quote

Payment Terms : T/T, L/C

Supply Ability : 10,000 pcs per month

Delivery Time : Within 45 days after order confirmation

Packaging Details : Carton + pallet, wooden box, or custom

Standard : EN 13414-1: 2003, EN 13411-3: 2004, GB/T 16762-2009, GB/T 14737-2009

Material : Galvanized steel wire rope with fibre core

Strength : 1670 MPa

Length : Customized

Wire rope end fittings : Flemish Eye Sleeve and Thimble

Key word : Double-leg wire rope sling, wire rope with Flemish Eye Sleeve and Thimble, fibre core, sling assembly

OEM or ODM services : Yes, upon request

Place of origin : Shanghai or Guangzhou, China

Packing : Carton + pallet, wooden box, or custom

equipped with : Standard Shackle or Hook

Contact Now

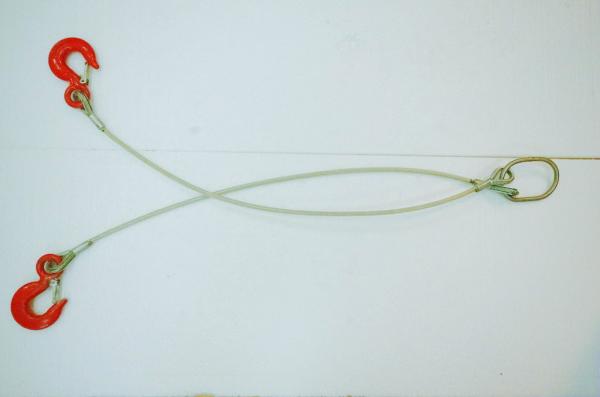

22mm Double-leg steel wire rope slings, fibre core, swaged wire rope with Flemish Eye Sleeve and Thimble, equipped with Master Link

Two-leg wire rope sling assembly, fibre core

Description


Our Double-leg Wire Rope Sling Assemblies (with fibre core) feature with soft eye sling being swaged, which means that the end has been folded back on itself, and spliced into the rope. To strengthen the soft eye,  a thimble eye would be pressed with a ferrule, using many tonnes of force to provide a strong connection.



The wire rope will run around the thimble, and then spliced back into itself. This creates a strong eye-shaped loop, and makes the end termination a lot stronger and a lot more permanent too.

Having thimbles at each end means that this product can be used for a range of applications. For example, it could be used as a balustrade with each end looping over a hook or a shackle.

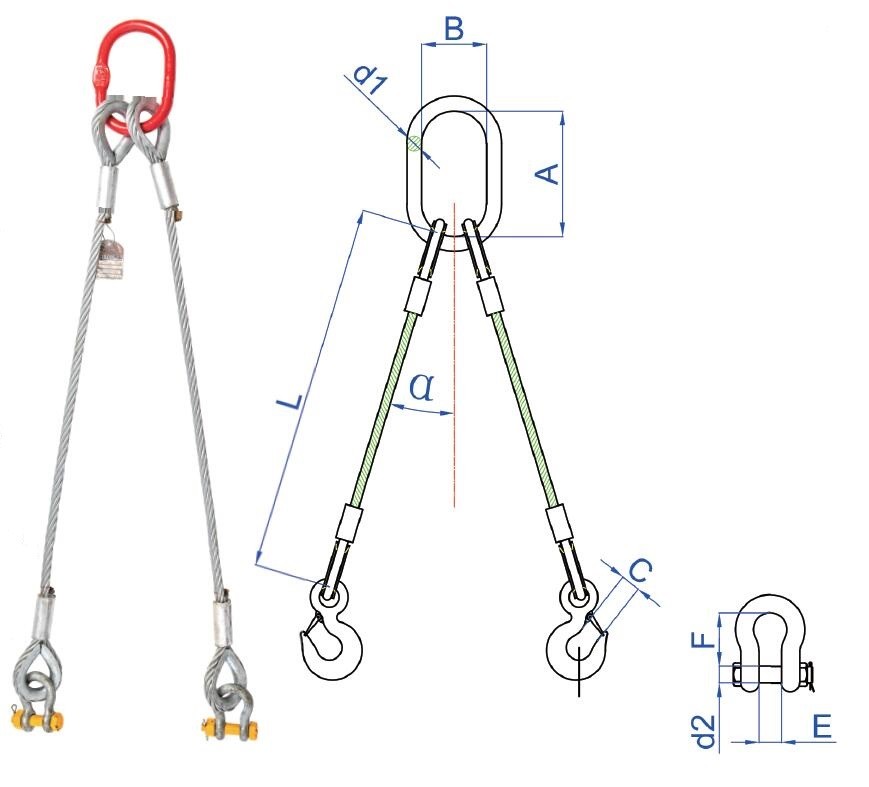

Specification

EN 13414-1 22mm Double Leg Steel Wire Rope Sling AssemblyEN 13414-1 22mm Double Leg Steel Wire Rope Sling Assembly

Product code Rope dia.
(mm)		 6x37 (a) + FC, 1770 MPa
WLL (tons)

Master Link dimension
d1×A×B

(mm)

 Equipped with
Hook Shackle
Load capacity Gape
C		 Load capacity dimension
d2×E×F
α ≤ 45° 45°＜ α ≤ 60° (tons) (mm) (tons) (mm)
CSDFH06 CSDFS06 6.0 0.46 0.33 16×140×80 1.0 23.6 0.5 8×12×28
CSDFH07 CSDFS07 7.0 0.62 0.44 16×140×80 1.0 23.6 0.5 8×12×28
CSDFH08 CSDFS08 8.0 0.81 0.58 16×140×80 1.0 23.6 1.0 11×17×36
CSDFH09 CSDFS09 9.0 1.0 0.73 16×140×80 1.0 23.6 1.0 11×17×36
CSDFH10 CSDFS10 10.0 1.27 0.9 16×140×80 1.0 23.6 1.0 11×17×36
CSDFH11 CSDFS11 11.0 1.53 1.09 16×140×80 2.0 26.9 1.5 13×19×42
CSDFH12 CSDFS12 12.0 1.82 1.3 16×140×80 2.0 26.9 1.5 13×19×42
CSDFH13 CSDFS13 13.0 2.14 1.53 16×140×80 2.0 26.9 2.0 16×21×47
CSDFH14 CSDFS14 14.0 2.48 1.77 16×140×80 2.0 26.9 2.0 16×21×47
CSDFH15 CSDFS15 15.0 2.8 2.0 16×140×80 2.0 26.9 3.25 19×27×60
CSDFH16 CSDFS16 16.0 3.2 2.3 16×140×80 3.0 30.2 3.25 19×27×60
CSDFH18 CSDFS18 18.0 4.1 2.9 20×160×95 3.0 30.2 3.25 19×27×60
CSDFH20 CSDFS20 20.0 5.1 3.6 20×160×95 4.5 38.1 4.75 22×32×71
CSDFH22 CSDFS22 22.0 6.1 4.4 26×190×110 4.5 38.1 4.75 22×32×71
CSDFH24 CSDFS24 24.0 7.3 5.2 26×190×110 7.0 45.0 6.5 25×37×84
CSDFH26 CSDFS26 26.0 8.6 6.1 26×190×110 7.0 45.0 6.5 25×37×84
CSDFH28 CSDFS28 28.0 9.9 7.1 32×230×130 11.0 61.0 8.5 28×43×95
CSDFH30 CSDFS30 30.0 11.4 8.1 32×230×130 11.0 61.0 8.5 28×43×95
CSDFH32 CSDFS32 32.0 13.0 9.3 32×230×130 11.0 61.0 9.5 32×46×108
CSDFH34 CSDFS34 34.0 14.6 10.4 38×275×150 11.0 61.0 12.0 35×52×119
CSDFH36 CSDFS36 36.0 16.4 11.7 38×275×150 15.0 66.6 12.0 35×52×119
CSDFH38 CSDFS38 38.0 18.3 13.1 38×275×150 15.0 66.6 13.5 38×57×131
CSDFH40 CSDFS40 40.0 20.2 14.5 38×275×150 15.0 66.6 17.0 42×61×148
CSDFH42 CSDFS42 42.0 22.3 15.9 38×275×150 22.0 86.6 17.0 42×61×148
CSDFH44 CSDFS44 44.0 24.5 17.5 45×340×180 22.0 86.6 25.0 51×73×177
CSDFS46 CSDFS46 46.0 26.8 19.1 45×340×180 22.0 86.6 25.0 51×73×177
CSDFH48 CSDFS48 48.0 29.2 20.8 45×340×180 22.0 86.6 25.0 51×73×177
CSDFH50 CSDFS50 50.0 31.6 22.6 45×340×180 30.0 101.6 25.0 51×73×177
CSDFH52 CSDFS52 52.0 34.2 24.4 50×350×190 30.0 101.6 25.0 51×73×177
CSDFH54 CSDFS54 54.0 36.9 26.4 50×350×190 30.0 101.6 35.0 57×83×197
CSDFH56 CSDFS56 56.0 39.7 28.3 50×350×190 30.0 101.6 35.0 57×83×197
CSDFH58 CSDFS58 58.0 42.6 30.4 56×400×200 37.0 108.0 35.0 57×83×197
CSDFH60 CSDFS60 60.0 45.6 32.5 56×400×200 37.0 108.0 35.0 57×83×197

 Note:
 1. Reference standard: EN 13414-1: 2003, EN 13411-3: 2004, GB/T 16762-2009, GB/T 14737-2009.
 2. Surface treatment of wire ropes can be galvanized and grease free, galvanized with grease and uncoated with grease.
 3. The wire rope structure, tensile strength and working load limited could be customized according to customer's request.
 4. Safety factor of the rigging is 5:1.
 5. Safety factor of the Master Link and Hook is 4:1.
 6. Safety factor of the shackle is 6:1.


EN 13414-1 22mm Double Leg Steel Wire Rope Sling Assembly
