Steel Wide Body Bow Shackle With Safety Screw Pin 1.25 Inch WLL 12 Tonne

Name: Steel Wide Body Bow Shackle With Safety Screw Pin 125 Inch WLL 12 Tonne
Brand: Anfeng / AF
Price: 1 USD

Brand Name : Anfeng / AF

Model Number : JB-12.0

Certification : CE, GS, ISO

Place of Origin : China

MOQ : 500 pcs

Price : Call or Email for quote

Payment Terms : T/T, L/C

Supply Ability : 10,000 pcs per month

Delivery Time : Within 45 days after order confirmation

Packaging Details : Carton + pallet, wooden box, or custom

Product name : Screw Pin Shackle, type JB, Anchor Bow Shackle

Material : High performance carbon steel with alloy steel pin, quenched and tempered

Finish : shackle bow and pin painted silver

WLL : 12 tonne

Standard : ASME B30.26-2004, RR-C-271D

Type of shackle : Bow shackle

OEM or ODM services : Yes, upon request

Packaging : Carton + pallet, wooden box, or custom

Contact Now

Tandard Bow Shackle with Safety Screw Pin

Product Description

The shackles have a large rounded shape that allows them to take loads from many directions without developing significant side load.

- All screw pin shackles are quenched and tempered, with high quality carbon steel shackle bows and alloy steel pins.

- Shackles bows are all hot dip galvanized, screws pins are painted yellow or customized upon request.

- Meets or exceeds all requirements of ASME B30.26-2004 and RR-C-271D.

- Proof Load is 2 times of the Working Load Limit. Minimum Breaking Load is 6 times of the Working Load Limit.

Main features:

- All screw pin shackles are quenched and tempered, with high quality carbon steel shackle bows and alloy steel pins.

- Shackles bows are all hot dip galvanized, screws pins are painted yellow or customized upon request.

- Meets or exceeds all requirements of ASME B30.26-2004 and RR-C-271D.

- Proof Load is 2 times of the Working Load Limit. Minimum Breaking Load is 6 times of the Working Load Limit.

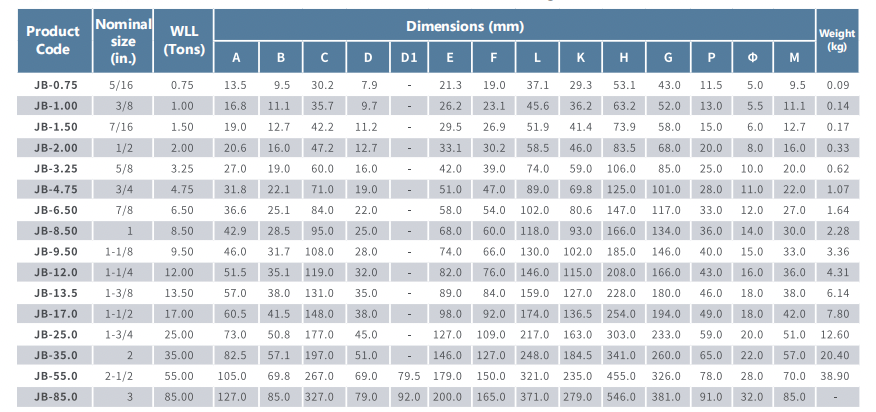

Specification

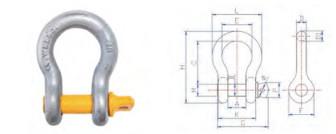

Steel Wide Body Bow Shackle With Safety Screw Pin 1.25 Inch WLL 12 Tonne

About Anfeng Lifting & Rigging

Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.

Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.
